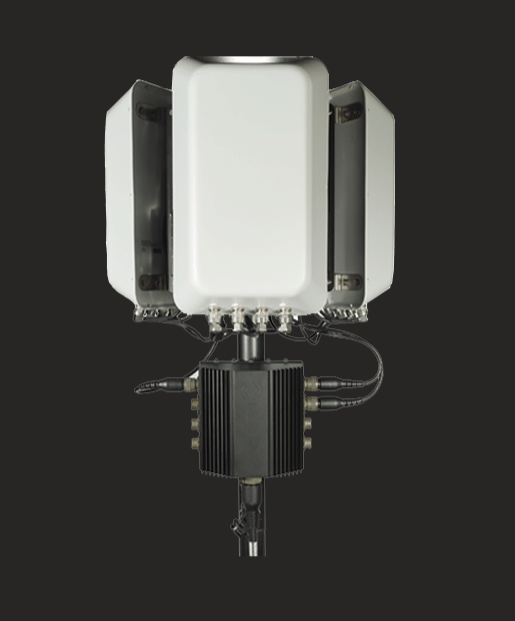

Silvus Technologies : STREAMCASTER PRISM

The StreamCaster PRISM family of modular Precision Integrated Sectorized MIMO antenna radio systems provides long-range sectorized coverage across wide areas of operation. Designed for tactical operations, at-the-halt, and fixed infrastructure applications, StreamCaster PRISM's ruggedized construction and toolless set-up enable it to be rapidly deployed for operational flexibility.
4X4 MIMO RADIO
StreamCaster PRISM combines the performance of StreamCaster MANET radios with high-gain, dual-polarity sector antennas to deliver up to 360° of coverage for air and ground applications.
SC4400E FEATURES

• Up to 20 Watts Output Power (80W effective radiated power, thanks to TX Eigen Beamforming)
• Single/Dual Band (300MHz – 6GHz)
• Up to 100 Mbps Data Rate

Sector Antenna Options
L-Band

• 12 bBi Gain
• 120° Horizontal Beamwidth
• 10° Vertical Beamwidth
• Dual Polarity

S-Band

• 12-15 bBi Gain
• 90° to 120° Horizontal Beamwidth
• 8° to 12° Vertical Beamwidth
• Dual Polarity

C-Band

• 12-16 bBi Gain
• 90° to 120° Horizontal Beamwidth
• 8° to 12° Vertical Beamwidth
• Dual Polarity

• 2 Watts Output Power (4W Effective Performance, thanks to TX Eigen beamforming)
• MN-MIMO waveform: 550+ Node Scalability
• Single/Dual Band (1350 – 5000 MHz)
• 20/10/5 MHz Bandwidth (2.5/1.25 Option)
• Up to 100 Mbps Data Rate
• Interfaces – Ethernet, USB, RS232
• Encryption: AES256; FIPS 140-3
• Spectrum Dominance: Available access to an expansive suite of LPI/LPD and Anti-Jamming resiliency capabilities
